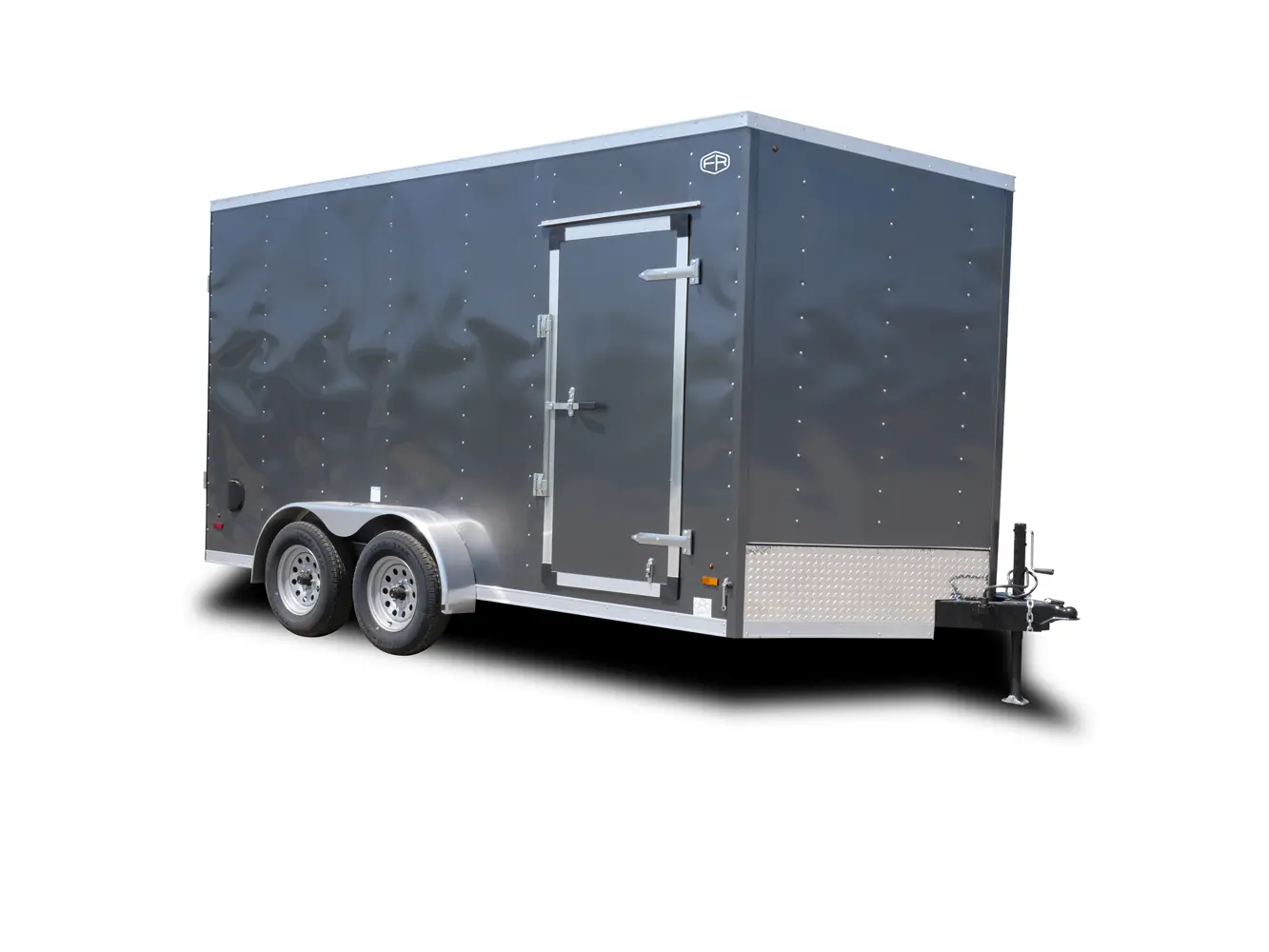

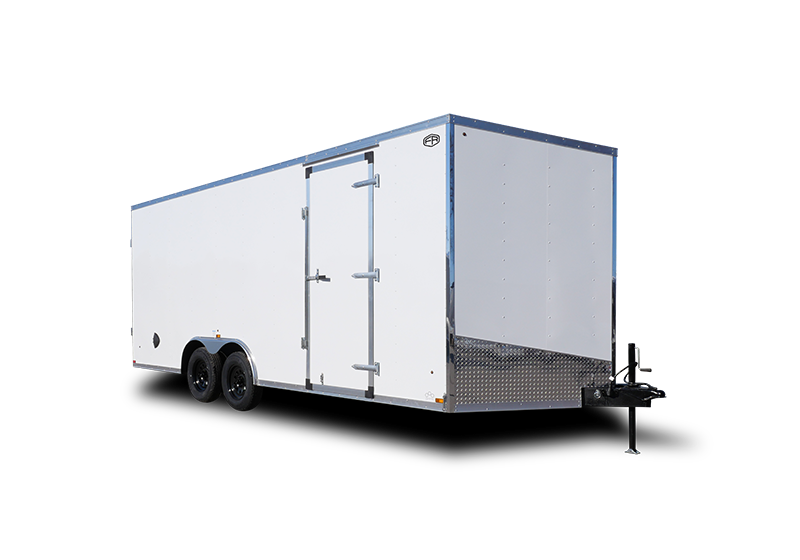

HAULIN OUTLAW ENCLOSED TRAILERS
The Haulin Outlaw general purpose enclosed trailer comes loaded with performance features other basic trailers just don’t have. The quality and performance make it a real value. The exceptional value of the Outlaw makes it perfect for everyday home, farm or business use.
This great looking trailer sports a v-nose wedge front which slices through wind resistance making it easy to pull. The quality components and construction deliver a great user experience. The 5 year warranty on tires with a 24/7 emergency roadside assistance (with your available spare tire), the lifetime warranty on LED lights and the Forest River Inc. one year limited warranty give you confidence and peace of mind.
-
- 2" x 3" Perimeter Tube Frame on 4', 5' and 6' wide Single Axle
- 2" x 4" Perimeter Tube Frame on 6' wide Tandem Axles
- 6" I-Beam Frame on 7' wide
- 6" I-Beam Frame on 8.5' wide TA2 and TA3 up to 24' Long
- 8" I-Beam on 8.5' wide TA3 26' Long and over
- 18" V-Nose for 4, 5' and 6' wide
- 30" V-Nose for 7' wide
- 30" V-Nose for 8.5' wide
- A-Frame Tongue with 2,000 lb. Tongue Jack
- Tubing Wall Posts 24" On Center for all Models
- Cross Members 24inches On Center for 4foot, 5foot, 6foot, and 7foot wide Models
- Cross Members 16" On Center for 8.5' wide Models
- Roof Bows 24" On Center for all Models
- 60" Interior Height for 5' wide
- 72" Interior Height for 6' and 7' wide
- 78" Interior Height for 8.5' wide
- Rust Inhibiting Z-Tech Protection on Chassis
- Painted Tongue and Roof Bows
- Painted Area Around Door Openings
- 2" Coupler on 4', 5' and 6' wide Single Axle
- 2 5/16" Coupler on 6' wide Tandem Axles
- 2 5/16" Coupler on 7' and 8.5' wide
- Drop Spring Axles
- ST205/75R15 Radial Tires on Silver Mods for SA and TA2 models
- ST225/75R15 Radial Tires on Silver Mods for TA3 models
- ST235/80R16 Radial Tires on Black Mods for TA4 and TA5 models
- LT215/75R17.5 Radial Tires on Steel Wheels for TA6 models
- One Piece Aluminum Roof
- Single Swing Rear Cargo Door on 4', and 5' wide Models

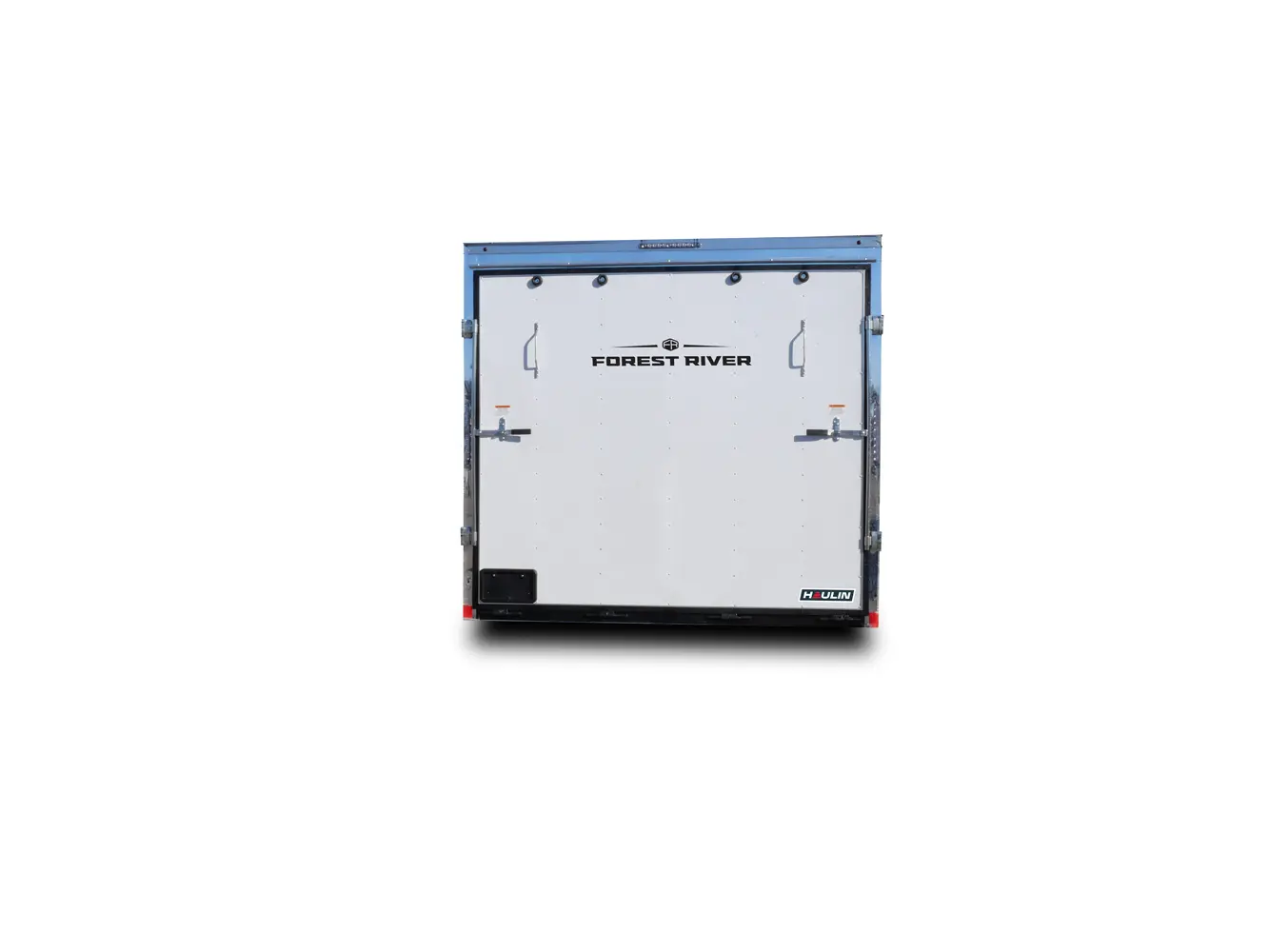

- Double Rear Doors on 6' and 7' wide Models

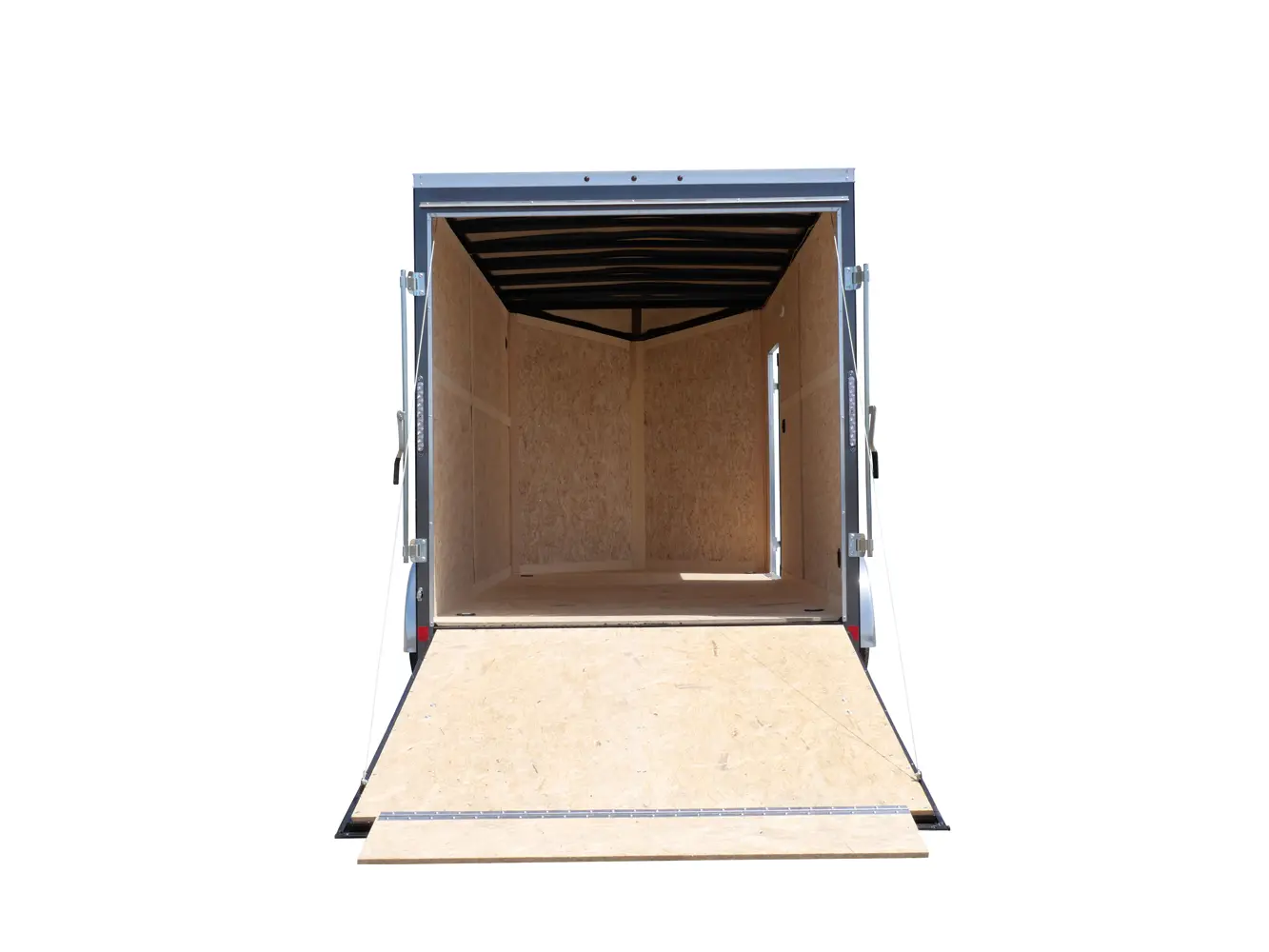

- 4500 lb. Ramp Door and Beavertail on 8.5' wide Models
- (4) 5,000 lb. Recessed Floor D-Rings on 8.5' wide Models
- Smooth Aluminum Exterior Fenders

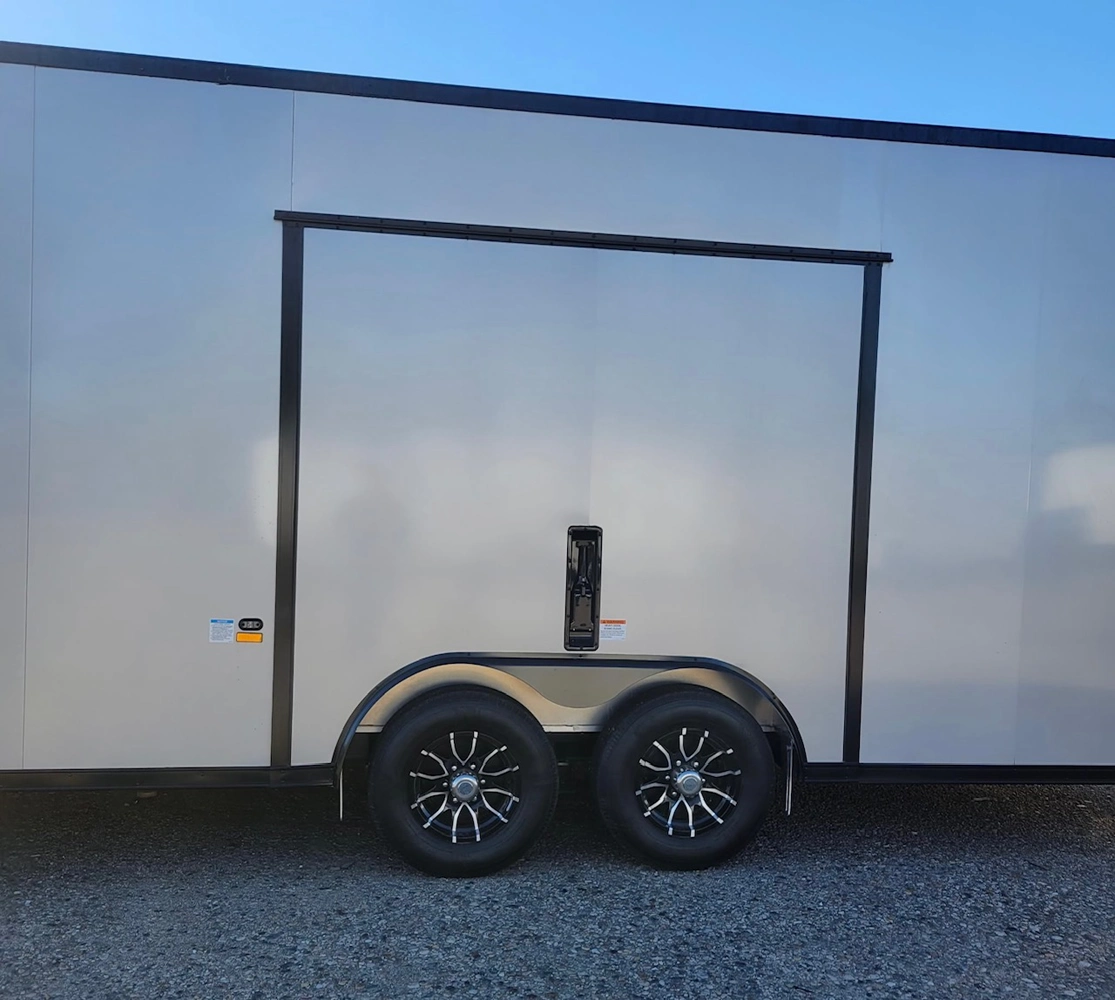

- 32" Side Door with Bar Lock
- 36" Side Door with Bar Lock for 8' Wide Models
- No Side Door on 4' or 5' Wide Models
- 24" Stoneguard
- 3/8" Engineered Wood Walls
- 3/4" Engineered Wood Floor
- .030 Exterior Metal with Screwed Down Seams
- Available in White, Black and Pewter only
- (1) Pair Flow Through Vents
- 3" Top and Bottom Trim
- LED Clearance Lights and Tail Lights
- LED Back-up Tail Light with Electric Brakes Models
- (1) Interior LED Dome Light
- Switch on Side Wall for Dome Light
- Sand Pad
- Aluminum Door Hold Backs
-
- Flat Top / 15" Slant V-Nose Front End (4' Wide Economy)
- Flat Top / 18" Slant V-Nose Front End (5' and 6' Wide Economy)
- Flat Top / 30" Slant V-Nose Front End (7' Wide Economy)
- Floor (24" O/C)
- Side Walls (24" O/C)
- Roof Bows (24" O/C)
- 32" C/S Barlock and Hinges (6' and 7' Wide Economy)
- Light Duty Ramp Door
- (1) 3,500 lb. Drop Spring Axle
- Electric Brakes (7' Wide Economy)
- 2" Coupler (4', 5', and 6' Wide Economy)
- 2 5/16" Coupler (7' Wide Economy)
- 36" A-Frame Tongue Underslung (4' Wide Economy)
- 3" Tubular Frame (4', 5', and 6' Wide Economy)
- 6" I-Beam Frame (7' Wide Economy)
- 49" Wall Height (4' Wide Economy)
- 5 1/2" Rear Header - Made from Two Angles (4' Wide Economy)
- Front Wind Tongue Jack
- Z-Tech Fully Undercoated Chassis (12" Spray Around Perimeter of Outside Trailer)
- Paint Tongue, Door Openings & Rear Perimeter
- Two Coat Primer/Black Top Coat Paint on All Exposed Steel
- LED Exterior Clearance Lights
- (1) LED Dome Light w/Wall Switch
- LED Strip Tail Lights (4', 5', and 6' Wide Economy)
- LED Strip Tail Lights w/Back Up Lights (7' Wide Economy)
- 4-Way Plug (4', 5', and 6' Wide Economy)
- 7-Way Plug w/ Battery & Breakaway Switch (7' Wide Economy)
- 3/4" Drymax Floor
- 4.8MM Luan Walls
- Black Plastic Flow Through Vents
- .030 Exterior Aluminum Metal w/Screws
- 1 1/2" Top & Bottom Trim
- Aluminum Fenders
- 16" Straight Stoneguard
- Aluminum Door Hold Backs
- One-Piece Aluminum Roof
- ST175/80R13 - Silver Spoke Mods (4' Wide Economy)
- ST205/75R15 - Silver Spoke Mods (5', 6', and 7' Wide Economy)
- Sand Pad
Specifications
| HLAFT46SA | HLAFT48SA | HLAFT58SA | HLAFT510SA | HLAFT68SA | HLAFT610SA | HLAFT612SA | HLAFT614SA | HLAFT612TA2 | HLAFT614TA2 | HLAFT712SAE | HLAFT714SAE | HLAFT710TA2 | HLAFT712TA2 | HLAFT714TA2 | HLAFT716TA2 | HLAFT718TA2 | HLAFT720TA2 | HLAFT8516TA2 | HLAFT8518TA2 | HLAFT8520TA2 | HLAFT8522TA2 | HLAFT8524TA2 | HLAFT8516TA3 | HLAFT8518TA3 | HLAFT8520TA3 | HLAFT8522TA3 | HLAFT8524TA3 | HLAFT8526TA3 | HLAFT8528TA3 | HLAFT8530TA3 | HLAFT8532TA3 | |
| GVWR: | 2000 lb. | 2000 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 7000 lb. | 7000 lb. | 3500 lb. | 3500 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. |
| Payload Capacity: | 1420 | 1350 | 2220 | 2110 | 1870 | 1835 | 1700 | 1560 | 5295 | 5160 | 1710 | 1530 | 5250 | 5060 | 4880 | 4700 | 4510 | 4320 | 4250 | 4065 | 3880 | 3695 | 3510 | 6925 | 6740 | 6555 | 6370 | 6185 | 5415 | 5240 | 5065 | 4890 |
| Exterior Length: | 9' 10" | 11' 10" | 11' 10" | 14' 1" | 12' 3" | 13' 10" | 15' 10" | 17' 10" | 15' 10" | 17' 10" | 15' 10" | 17' 10" | 13' 10" | 15' 10" | 17' 10" | 19' 10" | 21' 10" | 23' 10" | 18' 10" | 20' 10" | 22' 10" | 24' 10" | 26' 10" | 18' 10" | 20' 10" | 22' 10" | 24' 10" | 26' 10" | 28' 10" | 30' 10" | 32' 10" | 34' 10" |
| Exterior Width: | 5' 6" | 5' 6" | 6' 6" | 6' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 8" | 8' 8" | 8' 8" | 8' 8" | 8' 8" | 8' 8" | 8' 8" | 8' 8" | 8' 8" | 8' 8" | 8' 8" | 8' 8" | 8' 8" | 8' 8" |
| Exterior Height: | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" |
| Interior Length: | 6' 0" | 8' 0" | 8' 0" | 10' 0" | 8' 0" | 10' 0" | 12' 0" | 14' 0" | 12' 0" | 14' 0" | 12' 0" | 14' 0" | 10' 0" | 12' 0" | 14' 0" | 16' 0" | 18' 0" | 20' 0" | 16' 0" | 18' 0" | 20' 0" | 22' 0" | 24' 0" | 16' 0" | 18' 0" | 20' 0" | 22' 0" | 24' 0" | 26' 0" | 28' 0" | 30' 0" | 32' 0" |
| Interior Width: | 3' 8" | 3' 8" | 4' 8" | 4' 8" | 5' 9" | 5' 9" | 5' 9" | 5' 9" | 5' 9" | 5' 9" | 6' 9" | 6' 9" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 8' 2" | 8' 2" | 8' 2" | 8' 2" | 8' 2" | 8' 2" | 8' 2" | 8' 2" | 8' 2" | 8' 2" | 8' 2" | 8' 2" | 8' 2" | 8' 2" |
| Interior Height: | 4' 11" | 4' 11" | 4' 11" | 4' 11" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 5' 11" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" |
| Rear Door Type: | Single | Single | Single | Single | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp |
| Rear Door Width: | 3' 6" | 3' 6" | 4' 6" | 4' 6" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" |
| Rear Door Height: | 3' 8" | 3' 8" | 4' 4" | 4' 4" | 5' 7" | 5' 7" | 5' 7" | 5' 7" | 5' 7" | 5' 7" | 5' 7" | 5' 7" | 5' 7" | 5' 7" | 5' 7" | 5' 7" | 5' 7" | 5' 7" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 2" |
| Side Door Size: | Door Optional | Door Optional | Door Optional | Door Optional | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 36" x 74" | 36" x 74" | 36" x 74" | 36" x 74" | 36" x 74" | 36" x 74" | 36" x 74" | 36" x 74" | 36" x 74" | 36" x 74" | 36" x 74" | 36" x 74" | 36" x 74" | 36" x 74" |
| Coupler Size: | 2" | 2" | 2" | 2" | 2" | 2" | 2" | 2" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" |
| Curb Weight: | 580 | 650 | 790 | 880 | 1020 | 1155 | 1290 | 1430 | 1705 | 1840 | 1790 | 1970 | 1750 | 1940 | 2120 | 2300 | 2490 | 2680 | 2750 | 2935 | 3120 | 3305 | 3490 | 2875 | 3060 | 3245 | 3430 | 3615 | 4385 | 4560 | 4735 | 4910 |
| Hitch Weight: | 58 | 65 | 79 | 88 | 102 | 120 | 133 | 147 | 175 | 184 | 179 | 197 | 175 | 194 | 212 | 230 | 249 | 268 | 275 | 293 | 312 | 330 | 349 | 287 | 306 | 324 | 343 | 361 | 438 | 456 | 473 | 491 |
| Hitch Height: | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 20" | 20" | 16" | 20" | 20" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" |
| Platform Height: | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 16 | 16 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| Axle: | 1-2,000 | 1-2,000 | 1-3,500 | 1-3,500 | 1-3,500 | 1-3,500 | 1-3,500 | 1-3,500 | 2-3,500 | 2-3,500 | 1-3,500 | 1-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 |
| Suspension: | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring |
| Brakes: | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric |
| Tires: | ST175/80R13 | ST175/80R13 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST225/75R15 | ST225/75R15 | ST225/75R15 | ST225/75R15 | ST225/75R15 | ST225/75R15 | ST225/75R15 | ST225/75R15 | ST225/75R15 |
| Wheels: | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt |
| Main Frame: | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 4" Tube | 4" Tube | 4" Tube | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam |
| Floor: | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered | 3/4" Engineered |
| Floor Members: | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 16" on Center | 16" on Center | 16" on Center | 16" on Center | 16" on Center | 16" on Center | 16" on Center | 16" on Center | 16" on Center | 16" on Center | 16" on Center | 16" on Center | 16" on Center | 16" on Center |
| Walls: | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered | 3/8" Engineered |
| Wall Posts: | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center |
| Roof Bows: | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center | 24" on Center |
